number is, in large part, a length of galvanised steel rail mounted on a post. Getting that specification right matters far more than most procurement conversations acknowledge. This guide covers everything a projarticle-containerect manager, procurement officer, or civil engineer needs to know about crash barriers. What they are, how they work, which type suits which application, and what compliance documentation to demand from your manufacturer.
What is a Crash Barrier?
A crash barrier is defined as a longitudinal roadside safety structure designed to contain, redirect, or absorb the kinetic energy of a vehicle that has departed from its intended travel path, thereby preventing it from reaching hazardous areas such as steep embankments, opposing traffic lanes, bridge edges, or fixed roadside obstacles. Crash barriers are installed along highways, expressways, bridge parapets, mountain roads, median dividers, work zones, and industrial facilities wherever an uncontrolled vehicle departure would result in severe injury, death, or significant infrastructure damage. The defining characteristic of any crash barrier is its containment function: it must absorb enough of a vehicle's kinetic energy to prevent full penetration, while redirecting the vehicle back toward the carriageway at a shallow exit angle that minimises secondary collision risk. A well-designed barrier does not simply stop a vehicle; it manages the energy of impact across time and distance to keep occupants alive.
How Does a Crash Barrier Work?
When a vehicle strikes a crash barrier, the collision unfolds in three distinct phases. In the first phase, the vehicle's front corner contacts the beam rail, and the rail begins to flex outward, absorbing energy through controlled deformation. In the second phase, the barrier's posts and spacer blocks progressively engage, distributing the impact force along multiple installation points rather than concentrating it at a single location. In the third phase, the vehicle is redirected parallel to the barrier line and returns to the carriageway, ideally with reduced speed and a safe trajectory. The key engineering variable is the relationship between deflection and containment. A rigid barrier (such as a concrete New Jersey wall) deflects very little, which means it returns more of the impact energy back to the vehicle occupants. A fully flexible barrier (such as a wire rope system) deflects significantly, which requires more lateral clearance behind the installation. Semi-rigid metal beam crash barriers sit between these extremes, offering meaningful energy absorption through beam deformation and post-yielding, while keeping working width within acceptable limits for most highway applications. This is why the most widely adopted crash barrier in highway construction worldwide is the metal beam crash barrier, also known as the W beam or MBCB: it consistently delivers the right balance of performance, deflection, and serviceability.

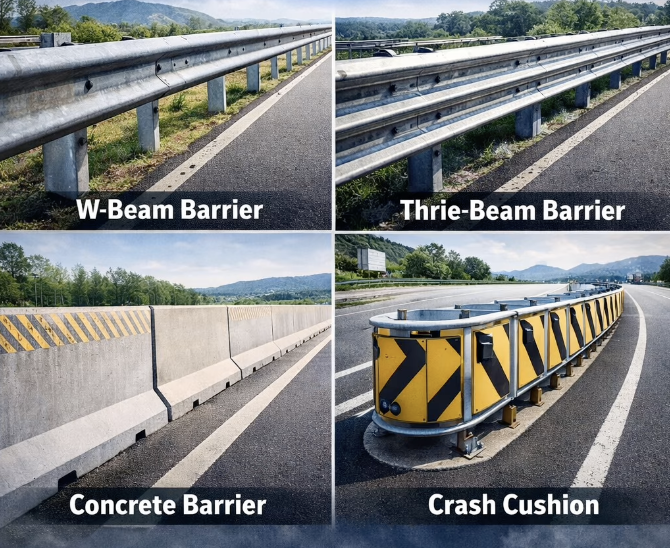

Types of Crash Barriers
Understanding the full landscape of crash barrier types is essential before any specification decision. Different systems are not interchangeable. Each is designed for a specific range of vehicle masses, impact speeds, site geometries, and maintenance regimes.
W Beam Crash Barrier (Metal Beam / MBCB)
The W beam crash barrier, formally the Metal Beam Crash Barrier (MBCB), is the most widely installed highway safety barrier in the world. It takes its name from the corrugated steel rail profile, which in cross-section resembles the letter "W." This profile is not decorative. The double-corrugation geometry gives the beam a combination of high longitudinal rigidity (to distribute impact loads along multiple posts) and controlled transverse flexibility (to absorb energy through deformation on impact). The result is a semi-rigid system that performs predictably across a wide range of vehicle types and impact conditions. W beam barriers are typically hot-dip galvanised to a minimum zinc coating of 550 GSM, which delivers a functional service life of 20 to 30 years in most climatic environments. Posts are driven into the subgrade at 1.5 to 2 metre centres, and the standard installation height from the finished road surface to the top of the beam is 625 to 750 mm, with the overall MBCB height from BC top at 925 mm. Single-faced configurations protect against roadside departures, while double-faced (back-to-back) installations function as median barriers on divided carriageways. If you are specifying barriers for national highways, expressways, mountain roads, or bridge approaches, the W beam crash barrier is the baseline product to evaluate first. Path Engineering manufactures MBCB to AASHTO M180 and EN 1317 standards. Request a product datasheet to confirm specification compliance for your project.
Thrie Beam Crash Barrier
Where the W beam has two corrugations, the thrie beam has three, producing a taller, stiffer rail profile with greater containment capacity. Thrie beam barriers are preferred on bridge parapets, approaches to overhead sign supports, and high-risk zones where the vehicle fleet includes a significant proportion of heavy goods vehicles or the consequence of barrier breach is catastrophic (such as a fall from height). They are also used as transition elements between W beam guardrail sections and rigid concrete barriers, smoothing the stiffness gradient and reducing the risk of vehicle pocketing at the joint. The additional material content of a thrie beam section comes with a cost premium over standard W beam, so it is generally specified selectively, where the performance requirement genuinely demands the higher containment level rather than as a default upgrade.
Concrete Crash Barrier (New Jersey / F-Shape)
Concrete barriers are rigid longitudinal systems, most commonly specified in the New Jersey (NJ) or F-shape profiles. They do not deflect on impact, which means all energy return goes back into the vehicle. This makes them appropriate where lateral space is critically constrained, narrow medians, tunnel walls, work zone interfaces, and where the alternative is an unprotected fall or an unguarded hazard that would cause greater harm than a rigid impact. Their durability and low maintenance burden make them attractive for permanent median applications on high-volume motorways. The significant limitation of concrete barriers is their installation permanence and the severity of vehicle damage in oblique collisions at higher speeds. For roadside applications where some system deflection is acceptable, metal beam systems consistently offer better occupant outcome metrics.
Cable / Wire Rope Barrier
A cable barrier system is defined as a highly flexible longitudinal safety barrier comprising three or four high-tensile wire ropes tensioned between ground-anchored posts. On impact, the cables deflect significantly, sometimes several metres, catching and decelerating the vehicle over an extended distance. This large working width means cable barriers are only viable where the behind-barrier clearance zone is sufficient to accommodate full deflection without the vehicle reaching a secondary hazard. Cable barriers are particularly effective as median barriers on wide divided highways, where their combination of low installation cost, high vehicle-capture efficiency, and visual permeability (drivers can see through them) makes them competitive with concrete alternatives. Research from the University of Nebraska found that vehicle run-off-road crashes account for 30 to 40% of all vehicle-related fatal crashes, and median cable barriers have proven effective at preventing the cross-median subset of those events.
Temporary and Portable Barriers
Temporary crash barriers, typically water-filled plastic modules or concrete blocks, serve a different function from permanent highway installations. Their role is to create controlled, clearly delineated protection zones in dynamic environments: construction work zones, temporary traffic management schemes, road events, and incident management operations. They are not designed for high-speed containment performance equivalent to a permanent MBCB installation but provide a meaningful level of protection against errant low-to-medium-speed vehicles and serve as a clear visual and physical demarcation of hazard zones.
Rigid, Semi-Rigid, and Flexible: A Practical Comparison
| Barrier Type | Flexibility | Working Width | Best Application |
|---|---|---|---|
| Concrete (NJ/F-shape) | Rigid | Minimal (<0.1 m) | Medians, tunnels, constrained zones |
| W Beam MBCB | Semi-rigid | 0.5–1.2 m | Highways, bridges, roadsides |
| Thrie Beam | Semi-rigid | 0.4–1.0 m | Bridge parapets, HGV corridors |
| Cable/Wire Rope | Flexible | 1.5–3.5 m | Wide medians, motorway dividers |
| Temporary Plastic | Semi-flexible | Variable | Work zones, event management |

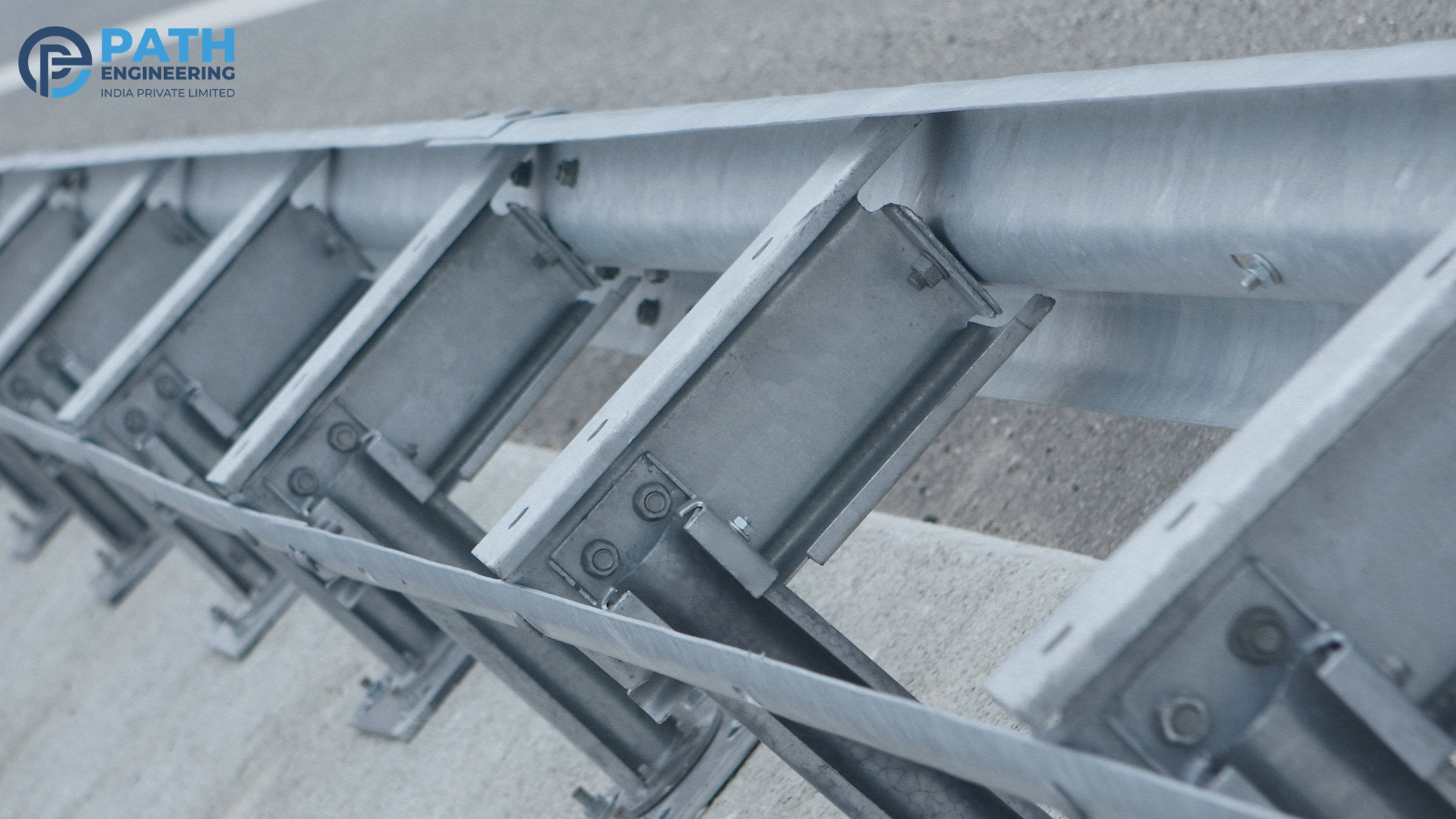

Understanding MBCB: The Metal Beam Crash Barrier Explained
MBCB, Metal Beam Crash Barrier, is the formal designation used in technical standards documents, procurement specifications, and highway authority correspondence across South Asia, the Middle East, and increasingly across international infrastructure projects. The term is particularly prevalent in Indian road construction under MORTH (Ministry of Road Transport and Highways) guidelines and IRC 119 specifications, and is used interchangeably with "W beam crash barrier," "guardrail," and "highway crash barrier" across different regulatory jurisdictions. An MBCB system is defined as a semi-rigid traffic safety barrier comprising a cold-rolled, hot-dip galvanised corrugated steel beam rail (the W section), mounted on driven steel or timber posts via steel spacer blocks (blockouts) and connecting hardware. The spacer blocks serve a critical function: they stand the beam rail off the post face, creating a gap that prevents vehicle tyres from riding up over the post tops during impact, a phenomenon known as "vaulting" that can be fatal.
Key MBCB specifications to confirm with any manufacturer:
- Raw material grade: Fe410/Fe510 steel conforming to IS 2062 or equivalent; minimum yield strength of 250 MPa
- Beam thickness: Typically 2.67 mm to 3.0 mm for standard W beam sections
- Galvanisation: Hot-dip galvanised to a minimum 550 GSM zinc coating per IS 2629 or ASTM A123
- Post spacing: 1.5 m to 2.0 m centre-to-centre
- Installation height: 625–750 mm (beam centre to road surface); 925 mm overall from BC top
- End terminals: Flared, buried, or crash-tested terminal end sections, not raw cut ends
Looking for compliant MBCB suppliers for your next highway project? Path Engineering's technical team can walk you through specification requirements and delivery schedules. Talk to our experts today!
Crash Barrier Standards and Compliance: What Procurement Teams Need to Know
Specifying a crash barrier is a materials and a compliance decision. Barriers installed on public roads must meet documented performance standards, and those standards vary by jurisdiction. Understanding the three dominant frameworks protects procurement teams from accepting non-compliant products and protects infrastructure authorities from liability exposure post-incident.
EN 1317 (European Standard)
The benchmark for vehicle restraint systems in Europe and many international markets that follow European norms. It classifies barriers across three performance dimensions:
Containment Level
From N1 (normal, for passenger cars) through H1, H2, H3, H4a, and H4b (high containment, for heavy goods vehicles). W beam MBCB typically achieves N2 to H2 containment levels depending on post spacing and beam gauge.
Impact Severity
Classes A, B, or C, measured by Acceleration Severity Index (ASI). The lower the class, the less violence transferred to vehicle occupants.
Working Width
W1 through W8, classifying the maximum lateral displacement of the barrier during impact.
AASHTO M180
Specifies the physical and material properties of corrugated steel beams for guardrail in the North American market, covering galvanisation thickness, beam profile dimensions, tensile strength, and yield strength. Most quality MBCB manufacturers produce to both AASHTO M180 and EN 1317 simultaneously.
NCHRP 350 and MASH (Manual for Assessing Safety Hardware)
The US crash test protocols that define how barriers are full-scale tested. Test Level 3 (TL3) covers the standard passenger vehicle and pickup truck at 100 km/h; Test Level 4 (TL4) adds a single-unit truck. Compliance with MASH TL3 is increasingly required on US-funded infrastructure projects.
When requesting compliance documentation from crash barrier manufacturers, ask specifically for: the crash test report number, the test standard used, the containment level achieved, and the manufacturer's certificate of conformance linking the supplied product to the tested configuration. Dimensional or material deviations from the tested configuration, even seemingly minor ones, can invalidate the test certification.
Where are Crash Barriers Installed? Key Applications
Crash barriers appear across a wider range of infrastructure environments than most buyers initially consider. On national highways and expressways, longitudinal W beam installations along the outer edge of carriageways prevent run-off-road departures, the single largest category of fatal highway crashes. On mountain and ghat roads, they function as the last line of defence against vehicles going over vertical drops, making galvanisation quality and post anchorage depth particularly critical in these applications.
Bridge parapets and flyover edges require thrie beam or high-containment MBCB configurations because the consequence of barrier breach, a fall from height, is categorically more severe than a roadside departure at grade. Median barriers on divided highways prevent cross-median crashes, which, while representing only 2 to 5% of divided highway crashes, account for a disproportionate share of fatalities due to the head-on collision dynamics they involve.
Work zones and construction corridors present a different challenge. Here, the barrier serves a dual function: protecting both the travelling public from entering the active construction area and construction workers from errant vehicles. Temporary barriers are frequently used here, supplemented by permanent MBCB installations where the work zone extends for long
durations. Industrial facilities, refineries, ports, chemical plants, and airport perimeters increasingly specify crash barriers to protect critical infrastructure from accidental vehicle impact, particularly in areas where heavy plant vehicles operate.
The Safety Case for Crash Barriers: What the Evidence Shows
The case for investing in correctly specified crash barriers rests on a body of evidence that is both large and consistent. A meta-analysis covering 32 longitudinal barrier studies found that roadside barriers reduce the probability of fatal injury in run-off-road events by approximately 45%. Median barriers reduce that probability by around 20%, a smaller effect reflecting the fact that median crashes typically involve lower departure angles than roadside events. Curves account for 27% of all fatal crashes, and that 80% of fatal crashes at curves are roadway departure events, exactly the scenario that a well-specified crash barrier is designed to address.
Among divided-highway crashes, cross-median events, which a properly installed median barrier prevents entirely, are responsible for 30% of serious injuries and fatalities despite representing only 2 to 5% of total crash events. The asymmetry between incidence rate and fatality rate is precisely why median barrier installation has become a programmatic highway safety priority in road authorities across North America, Europe, and increasingly in the Gulf and South Asian markets.
What these numbers mean in procurement terms is straightforward: the cost of under-specification, a barrier installed at the wrong containment level, with inadequate galvanisation, or with non-crash-tested end terminals, is not a marginal engineering footnote. It is a measurable increase in the probability of a fatal outcome. Crash barrier procurement is not a commodity purchase. It is a safety-critical decision that warrants the same rigour as any other structural element in the project.
Why Partner with Path Engineering for Your Crash Barrier Requirements
Specifying the right crash barrier is one half of the equation. The other half is sourcing it from a manufacturer who can demonstrate compliance, maintain dimensional consistency across large quantities, and support your project through delivery, installation guidance, and post-supply documentation.
Path Engineering brings together manufacturing rigour and project experience across highway, bridge, and infrastructure applications. Our crash barriers, W beam MBCB, thrie beam, and associated hardware, including end terminals, spacer blocks, posts, and anti-dazzle boards, are manufactured to AASHTO M180, EN 1317, and IRC 119 specifications, with hot-dip galvanisation to a minimum 550 GSM zinc coating. Every batch is produced from certified steel grades, with material test certificates (MTCs) and compliance documentation available as standard.
What distinguishes Path Engineering is not just the product, but the technical support that surrounds it. Our team works with project engineers and procurement managers to confirm specification requirements, advise on containment level selection for specific site conditions, and ensure that the product delivered matches the compliance documentation submitted at tender.
If your project involves highway construction, bridge works, mountain road development, or any infrastructure application where vehicle containment is safety-critical, Path Engineering is the crash barrier partner built for the job. Contact our team to discuss specifications, quantities, and delivery timelines.
Frequently Asked Questions
What is a crash barrier?
A crash barrier is defined as a longitudinal roadside or median safety structure installed along highways, bridges, and high-risk road sections to contain, redirect, or absorb the energy of an errant vehicle that has left its intended travel path. Crash barriers prevent vehicles from reaching hazardous zones, embankment drops, opposing traffic lanes, bridge edges, and fixed obstacles, thereby reducing the severity of road accidents and protecting both vehicle occupants and other road users.
What is the purpose of a crash barrier in road construction zones?
In road construction zones, a crash barrier serves two simultaneous functions: protecting the travelling public from inadvertently entering the active construction area, and protecting construction workers and equipment from errant vehicles. Temporary crash barriers, typically modular water-filled or concrete units, are used to physically delineate the boundary between live traffic and construction activity, absorbing impact energy from vehicles that breach the taper or merge zone. In long-duration work zones, permanent MBCB installations are increasingly used alongside temporary systems to provide a higher level of containment performance.
What is another name for a crash barrier?
Crash barriers are known by several names depending on the jurisdiction, material, and application context. Common alternative names include guardrail, guide rail, highway barrier, road safety barrier, traffic barrier, vehicle restraint system (VRS), safety barrier, and road guard rail. The Metal Beam Crash Barrier is specifically also referred to as MBCB, W beam crash barrier, corrugated beam guardrail, and semi-rigid traffic safety barrier. In North American highway engineering, the term "guardrail" is most widely used; in European and South Asian contexts, "crash barrier" and "MBCB" are more common.
What are the Types of Crash Barriers?
The main types of crash barriers used in highway and infrastructure construction are:
- W Beam (Metal Beam/MBCB): A semi-rigid corrugated steel barrier and the most widely installed type globally. Used on highways, expressways, and mountain roads.
- Thrie Beam: A heavier semi-rigid steel barrier with three corrugations. Used on bridge parapets and high-containment applications.
- Concrete Barrier (New Jersey/F-Shape): A rigid barrier with no deflection. Used in constrained medians and tunnel walls.
- Cable/Wire Rope Barrier: A highly flexible system using tensioned steel cables. Effective for wide-median motorway applications.
- Temporary/Portable Barriers: Modular plastic or concrete units used in work zones and event traffic management.
Barriers are further classified by their rigidity (rigid, semi-rigid, or flexible), their containment level (N1 to H4b under EN 1317), and their installation position (roadside, median, or bridge parapet).
How long does a metal beam crash barrier last?
A hot-dip galvanised metal beam crash barrier with a minimum zinc coating of 550 GSM typically has a functional service life of 20 to 30 years under standard highway conditions. In coastal, high-humidity, or highly corrosive environments, an additional protective coating or higher-specification galvanisation may be required to maintain service life. Individual components, beam rails, and posts can be replaced selectively after impact damage without dismantling the entire installation, making MBCB systems significantly more maintainable and cost-effective over their lifecycle compared to concrete alternatives.
What does MBCB stand for in road construction?
MBCB stands for Metal Beam Crash Barrier. It is the standardised designation used in Indian highway engineering specifications (MORTH, IRC 119) and is increasingly referenced in Gulf and international infrastructure project documentation. MBCB refers specifically to the corrugated steel W-beam guardrail system, comprising beam rail, posts, spacer blocks, and connecting hardware, manufactured to recognised standards such as AASHTO M180, EN 1317, and IRC 119. The term is used interchangeably with "W beam crash barrier," "highway guardrail," and "semi-rigid traffic safety barrier."
